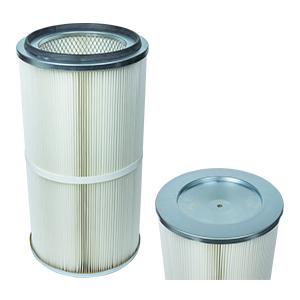

CARTRDIGE FILTER KDC
Cartridge filter- metal caps - open top/cloced bottum
Our Cartridge filter KDC is produced with standard metal caps (DIN caps) also called end-caps and top-caps. Cartridge filter KDC is available up to 2 meters long and in various diameters that follow market standards. The cartridge filter is produced with metal mesh inside. On the outside a Cartridge filter KDC is equipped as standard with a support band every 30 cm or alternatively with a support mesh to create even more stability.
How we produce our cartridge filter KDC for filtration

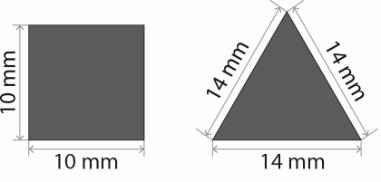

A Cartridge filter KDC is made with an open cap at the top and a closed bottom. If required, a 13 mm hole can be made in the closed bottom, so that the filter can be mounted on the associated equipment. konfAir offers both a triangular or a square gasket that can be placed on the top-cap on both the clean air side/hole side or on the dust side/pleat side, depending on your customer's needs. We also offer to include the gasket seperately, so that it is possible for you to customize the ordered KDO Filter cartridges directly at your customer's location.
Product advantages
- Large filter area
- Effective against the finest dust
- Chemical restistance
- Effecient and easy to clean
- Limited pressure drop
How do i choose the right Cartridge filter for my customer?
At konfAir, we have many years of experience in choosing and developing the right Cartridge filter for your customer. We have some in-depth questions about dimensions, filter plant, cleaning and operating conditions in relation to dust volume, filter surface load, air volume and temperature, so that together we can find the best solution.
Back to Cartridge filters
Need help?
A proper filtration, along with energy consumption, is often crucial in choosing the right filter for your customer. We help you to success with honest and competent guidance.
Contact us by phone +45 97 13 71 33 or at konfAir@konfAir.dk
